Lintels under gable ends

At BRANZ, we often get asked if it’s necessary to have a lintel over an opening in a wall under a gable end where the gable framing may be able to span the opening without support from the lintel. Here’s our advice.

Topics include

Roof
By
Roger Shelton Roger Shelton
Last updated 1 Dec 2018
Share
Share on Facebook Share on Linkedin

It is common to see lintel beams over an opening in a wall under a gable end. These have presumably been sized to match other loadbearing lintels on the job. This is obviously a simple, expedient solution but may not be necessary if the gable end structure is self-supporting.

Two options

There are two options under gable ends.

Non-loadbearing lintel

If the gable is formed with a standard loadbearing roof truss, the lintel will not be required to support any loads and may be just a head trimmer selected from Table 8.15 in NZS 3604:2011 Timber-framed buildings (Figure 1).

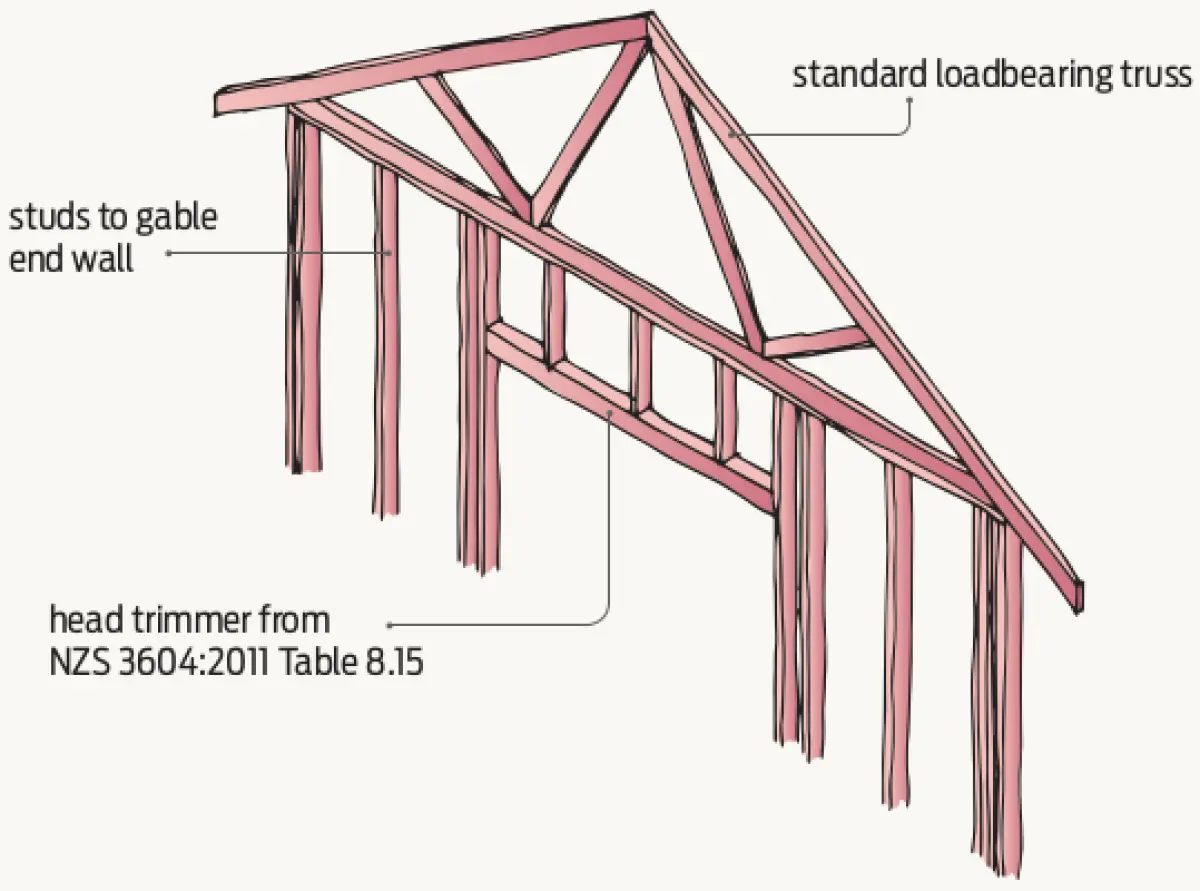

Diagram of a wooden frame from the side of a house
Figure 1 Non-loadbearing lintel.

Loadbearing lintel

If the gable is formed as a gable truss or is stick-framed, the lintel will be loadbearing and may be selected from lintel Table 8.9 from NZS 3604:2011 (Figure 2).

The question then arises, what is the loaded dimension (LD) to use? The worst-case scenario for the loaded dimension will be:

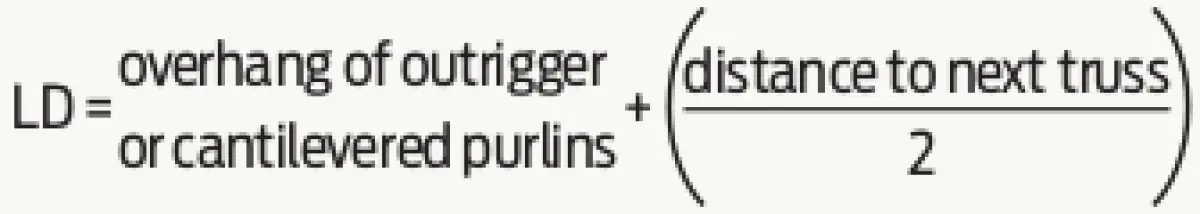

An image of an equation stating LD is equal to overhang of outrigger or cantilevered purlins plus open bracket distance to next truss divided by two closed bracket

For the built-in limits of NZS 3604:2011, this will always be less than 2 m, so use this as the loaded dimension in the table.

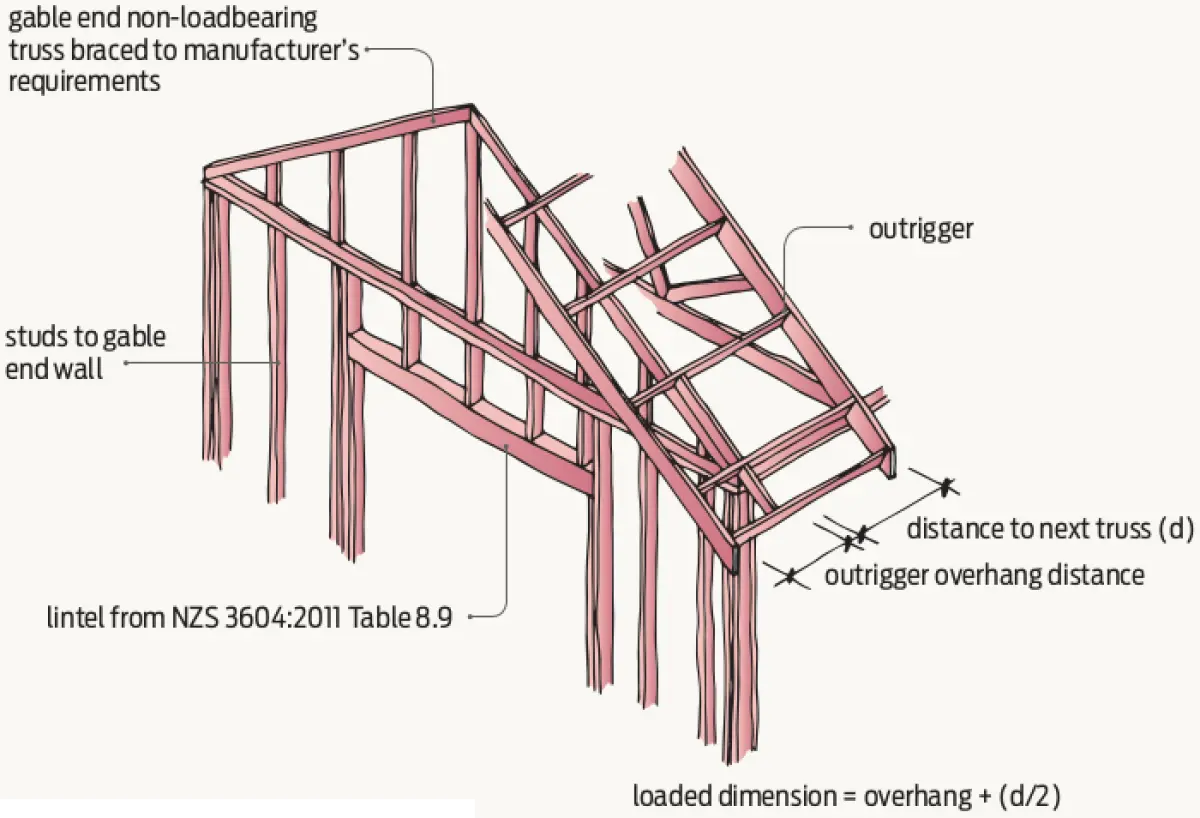

Diagram showing the wooden frame from the side of a house with Loadbearing lintel
Figure 2 Loadbearing lintel.

Just to be clear

These scenarios are not to be confused with a lintel in the lower storey of a 2-storey house under a gable end. In this case, the lintel would be sized from Table 8.12.
