Bracing for steps in floors or ceilings

Readers have asked about bracing requirements in two extra situations, so tom edhouse outlines the rules. First up are discontinuous floors or ceilings.

Topics include

Bracing
By
Tom Edhouse
Last updated 19 May 2026
Share
Share on Facebook Share on Linkedin

NZS 3604:2011 clause 5.15 has the bracing requirements for buildings with a step or break greater than 100 mm in the finished levels. This requires:

  • a bracing line in the storey below, directly under the discontinuity, and
  • the bracing elements in the storey below must be continuous from floor level to the underside of the highest ceiling level (see Figures 1 and 2).

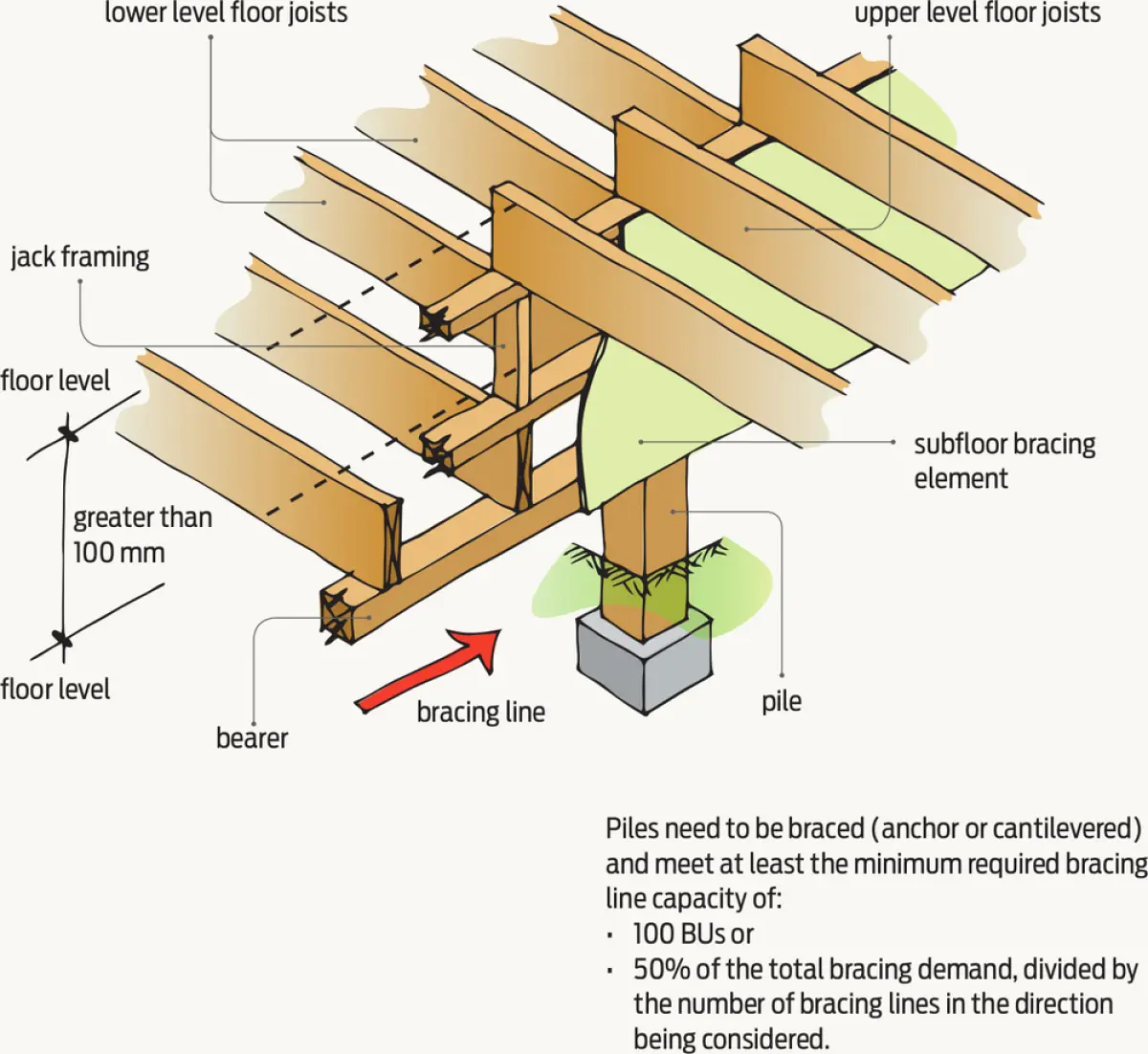

A diagram of wooden framing showing bracing design where floor is discontinuous
Figure 1 Bracing design where floor is discontinuous.

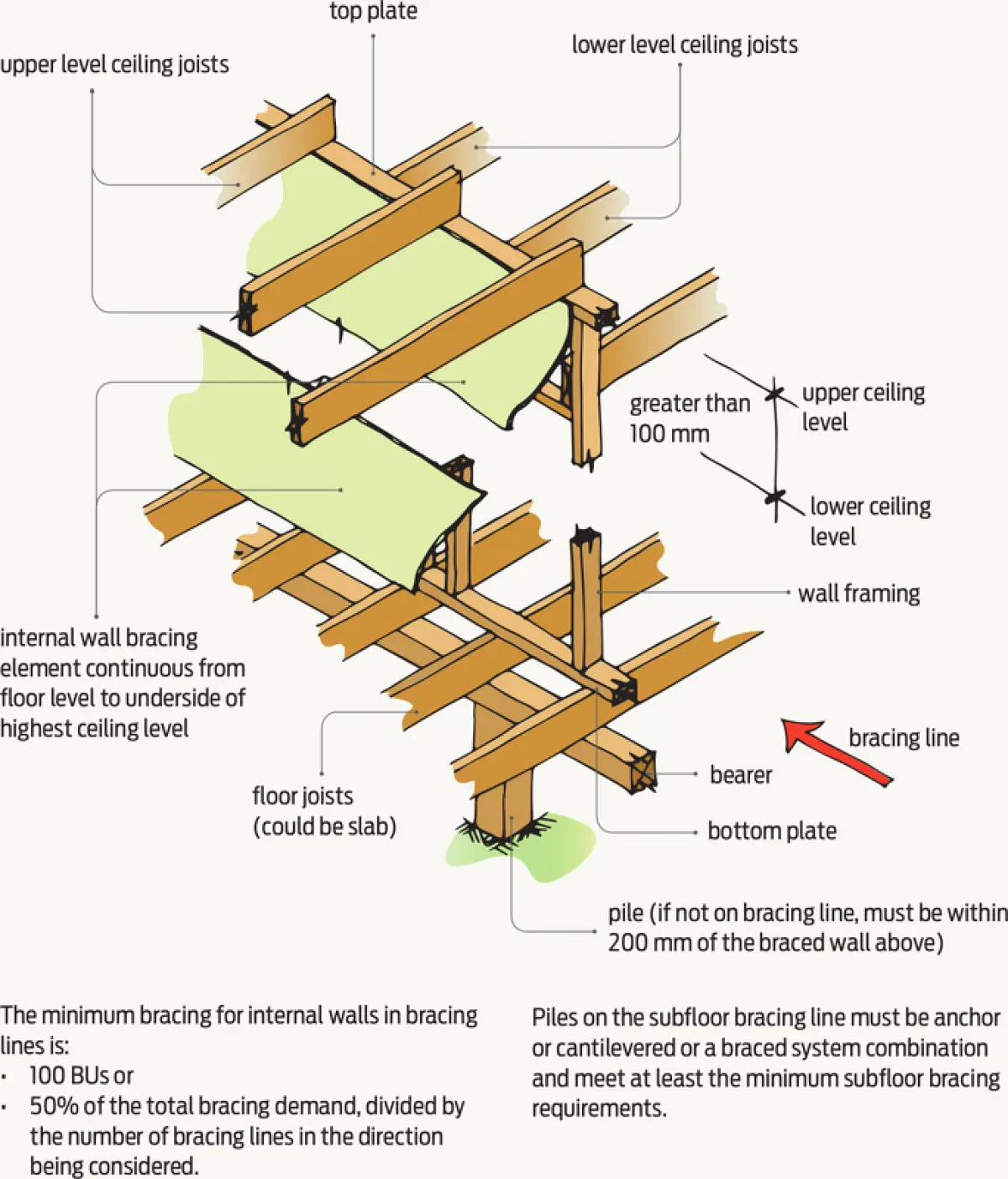

A diagram of wooden framing showing a bracing design where ceiling is discontinuous
Figure 2 Bracing design where ceiling is discontinuous.
